Architecture Workbench.

Completed

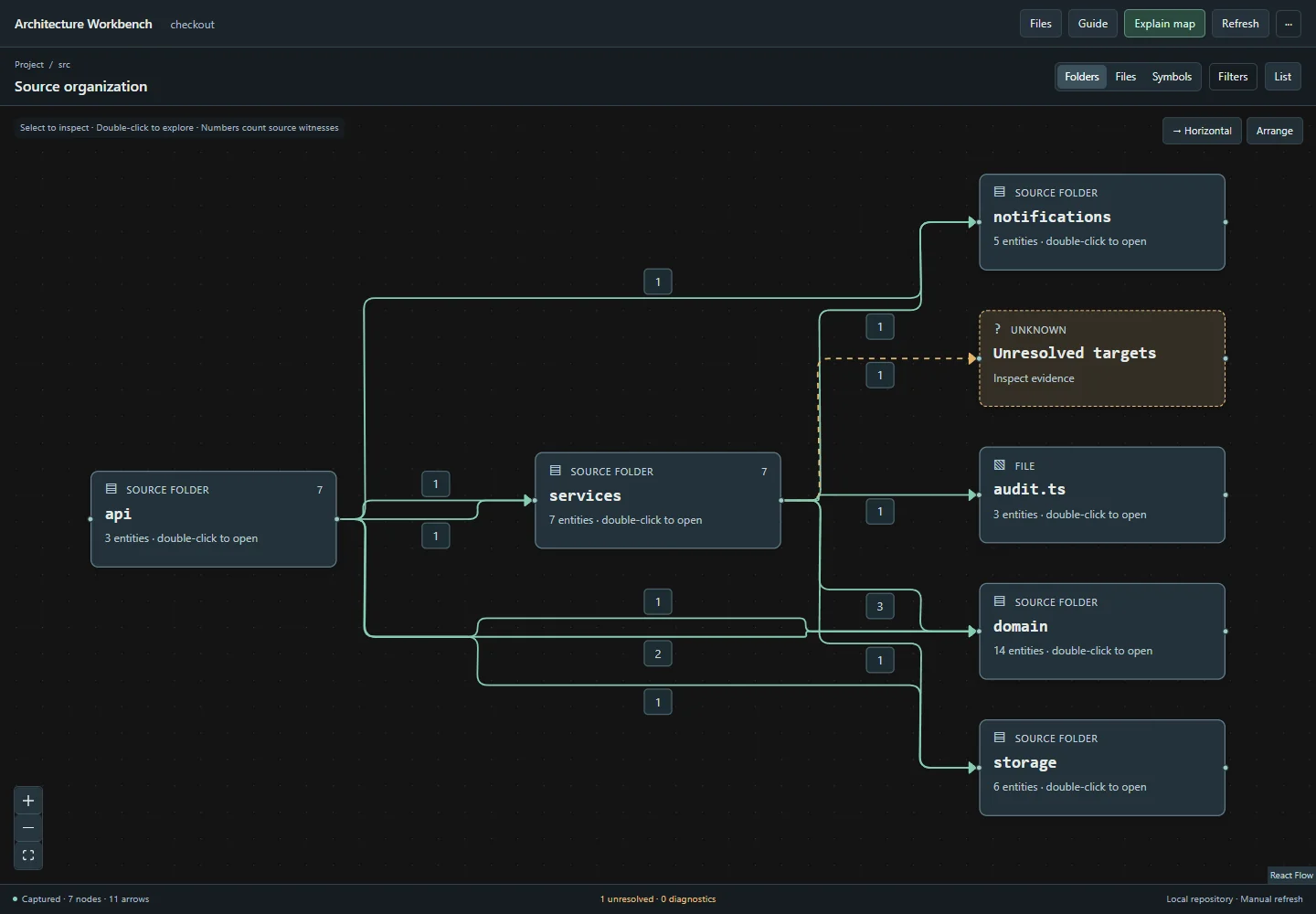

Turn a TypeScript or Unity C# project into a code map, then click a connection to see its source.

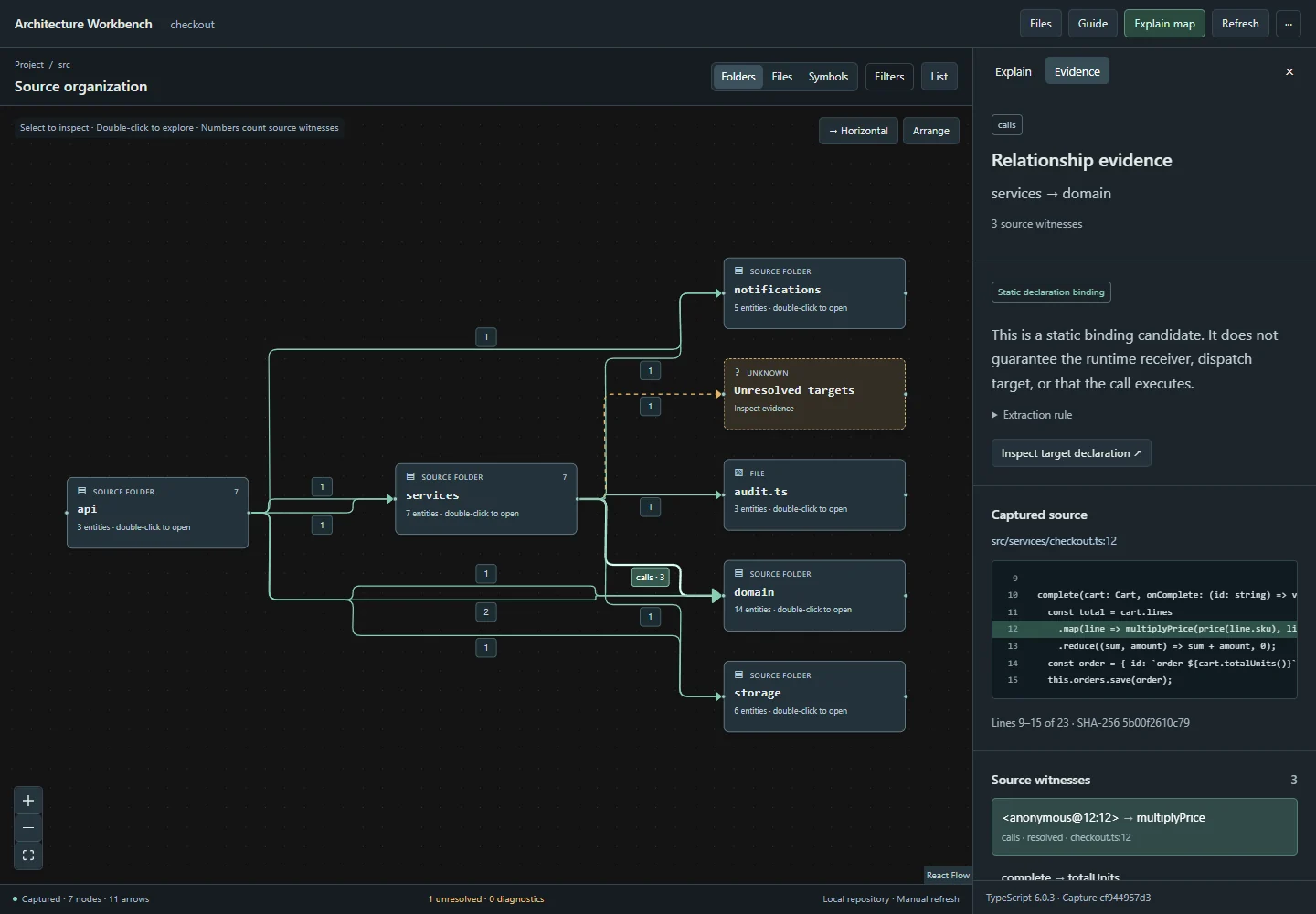

A local CLI and browser workspace for understanding TypeScript and Unity C# codebases. Compiler tools extract relationships; clicking a connection shows the calls, references, and source locations behind it. Unresolved targets stay marked as unresolved.

Maps can be rearranged and exported as standalone HTML. The screenshots use the bundled checkout example. These are static source relationships, not a runtime trace. This is a completed prototype with no public release.

My contribution and AI use

An independent tool developed with AI assistance. I chose a local browser and CLI over an editor-specific interface, with source evidence as the basis for every map. It is a working prototype without a public repository or release yet.
